PRIDE VICTORY® 10 LX WITH CTS SUSPENSION

FOR PRICING, PLEASE CALL 941-739-5596

Description

FDA Class II Medical Device

The Victory® 10 LX with CTS Suspension offers a smooth ride with performance to match. Comfort-Trac Suspension (CTS) is the next generation in mobility scooter ride comfort. Pride’s industry first technology incorporates advanced suspension components for improved absorption over rough surfaces, and a more comfortable ride experience over various terrains.

Features

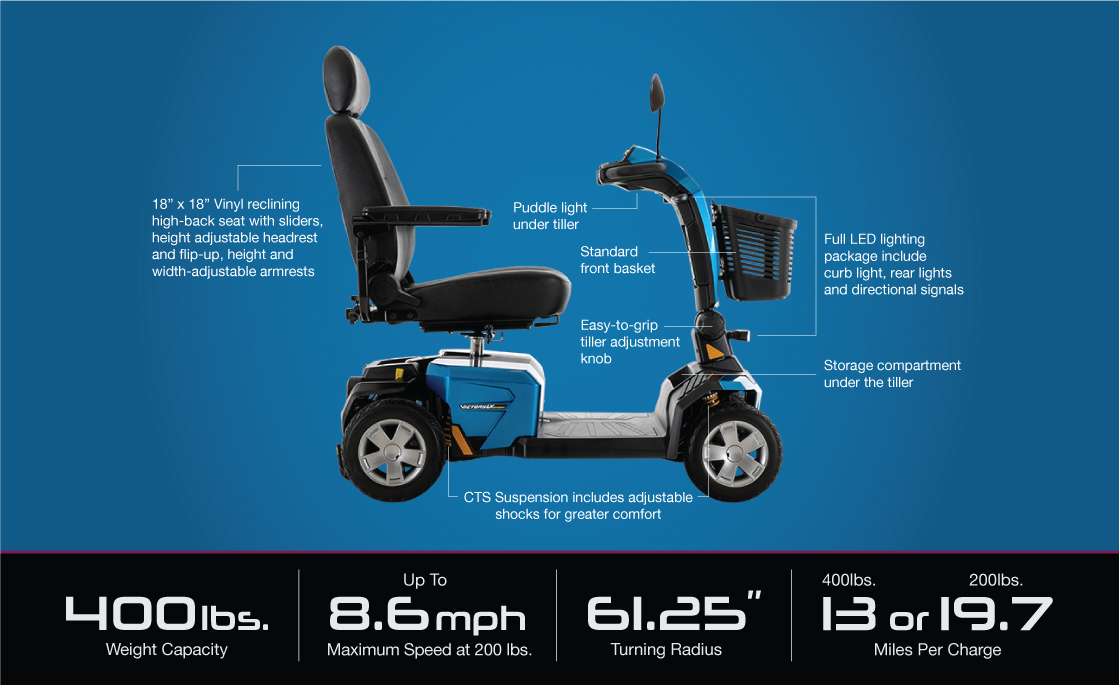

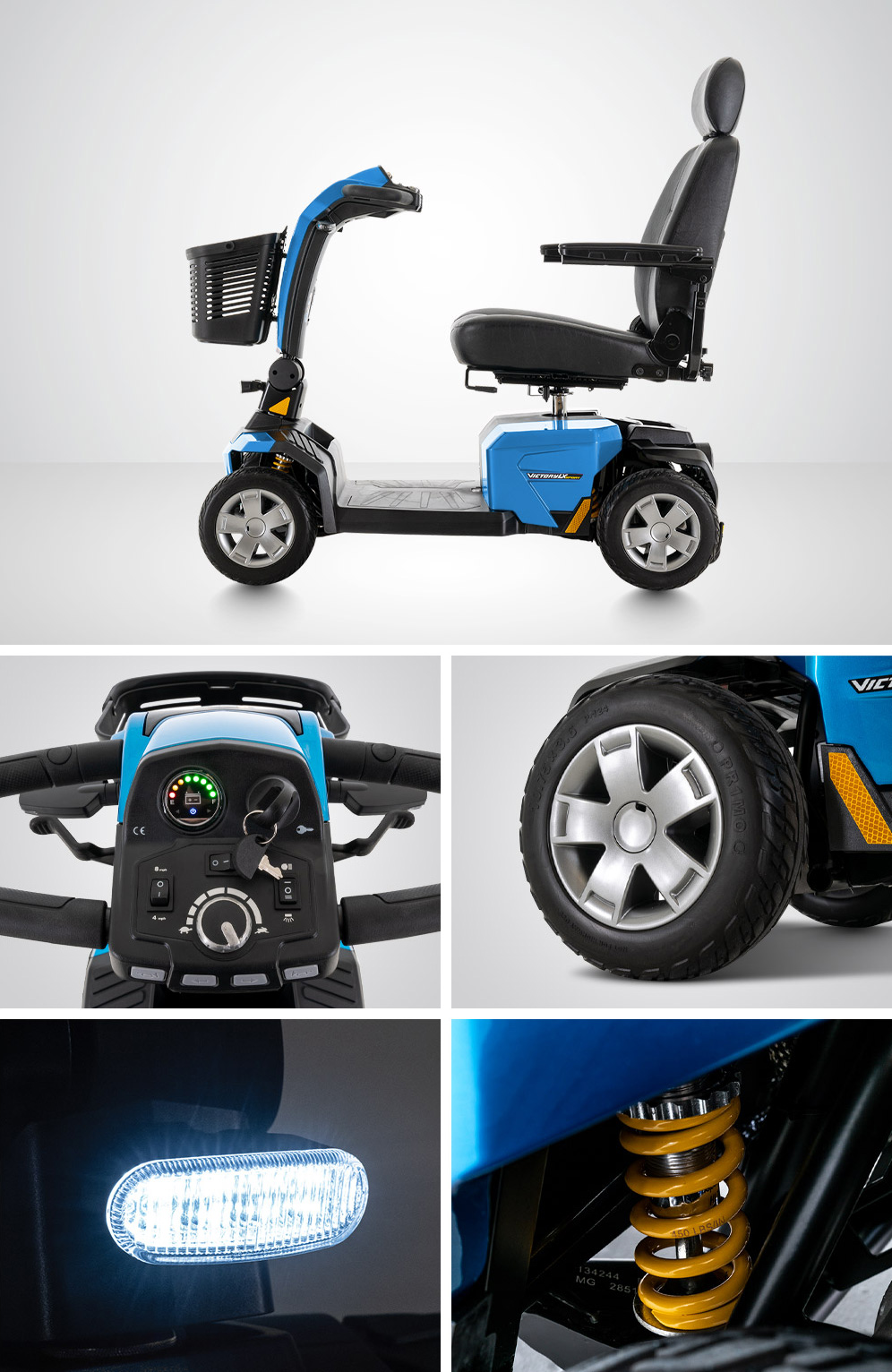

• Comfort-Trac front and rear suspension
• Feather-touch disassembly permits simple frame separation with only one hand
• Delta tiller with wraparound handles
• Crush Proof Front Basket
• Black, non-scuffing tires
• Back-lit battery gauge
• Full LED lighting package that includes curb and rear lights, directional signals and courtesy light under tiller
• Auto connecting front to rear harness
• Easy Grip Tiller adjustment knob
• Easy access tiller-mounted charger port
• Storage compartment below tiller
• Enhanced flush-mounted horn buttons

Specifications

• Model; Victory 10 LX with CTS Suspension
• Model Number; S710LX
• Front Tires; 3.5″ x 10″ Solid
• Rear Tires; 3.5″ x 10″ Solid
• Maximum Speed; Up to 5.6 mph
• Ground Clearance; 2.2″ at motor
• Turning Radius; 59.9″
• Overall Length; 47″
• Overall Width of Base; 22.2″
• Seat-to-Ground Height Range; 23.25″-24.75″
• Seat Type; Reclining High-back with sliders & headrest (18×18)
• Weight; 179 lbs.
• Seat-to-Deck Height Range; 17.7″
• Battery Weight; 32.5 lbs. each
• Battery Requirements; (2)40AH
• Maximum Range Per Charge; Up to 16.16 miles
• Battery Charger; Off-board, 5A
• Suspension; Front and Rear
• Maximum Weight Capacity; 400 lbs.

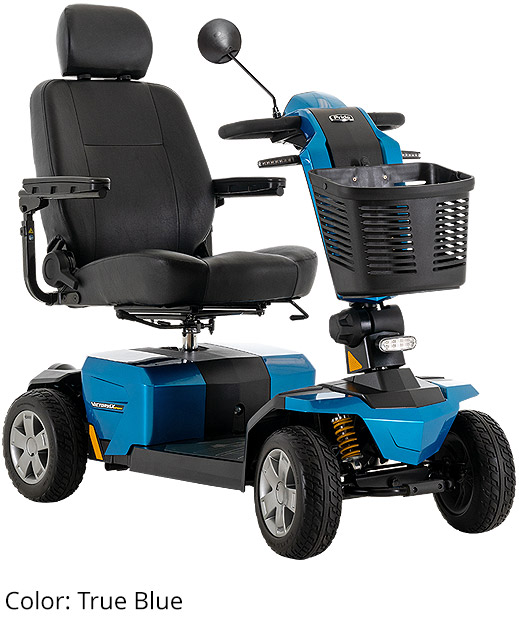

• Standard Body Colors; Candy Apple Red, True Blue
• Weight of Heaviest Piece; 77.6 lbs. (Front section)
• Warranty
  • Lifetime limited on frame
  • 2-Year limited on Electronics
  • 2-Year limited on Drivetrain
