PRIDE VICTORY® 10 LX WITH CTS SUSPENSION
FOR PRICING, PLEASE CALL 941-739-5596
Description
FDA Class II Medical Device
The Victory® 10 LX with CTS Suspension offers a smooth ride with performance to match. Comfort-Trac Suspension (CTS) is the next generation in mobility scooter ride comfort. Pride’s industry first technology incorporates advanced suspension components for improved absorption over rough surfaces, and a more comfortable ride experience over various terrains.

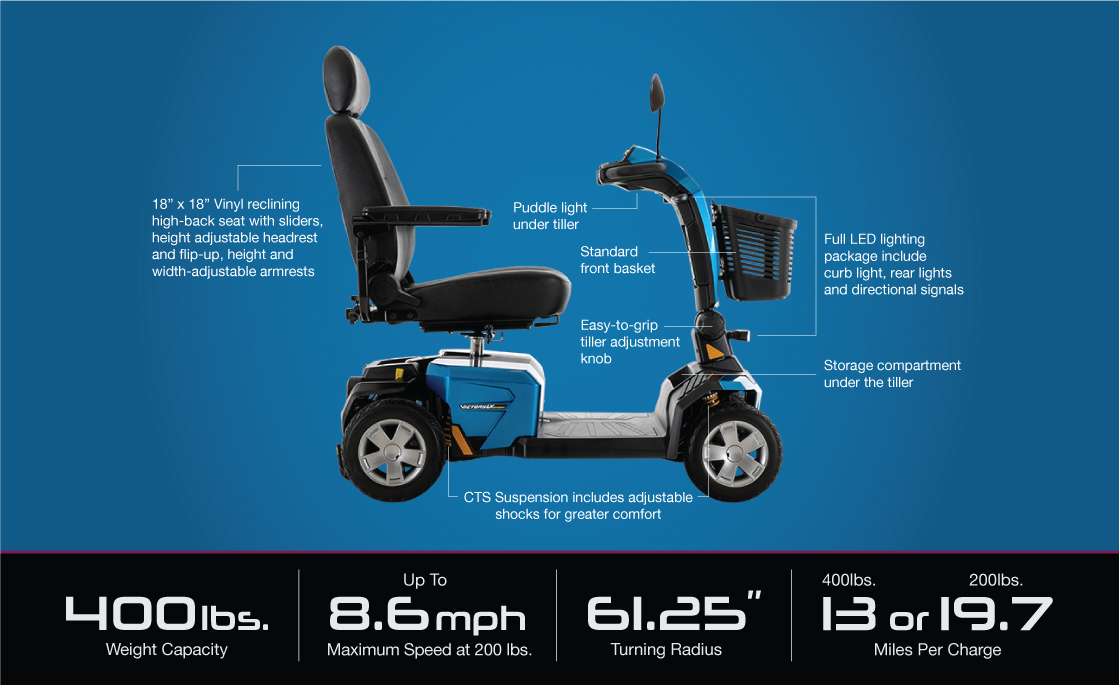

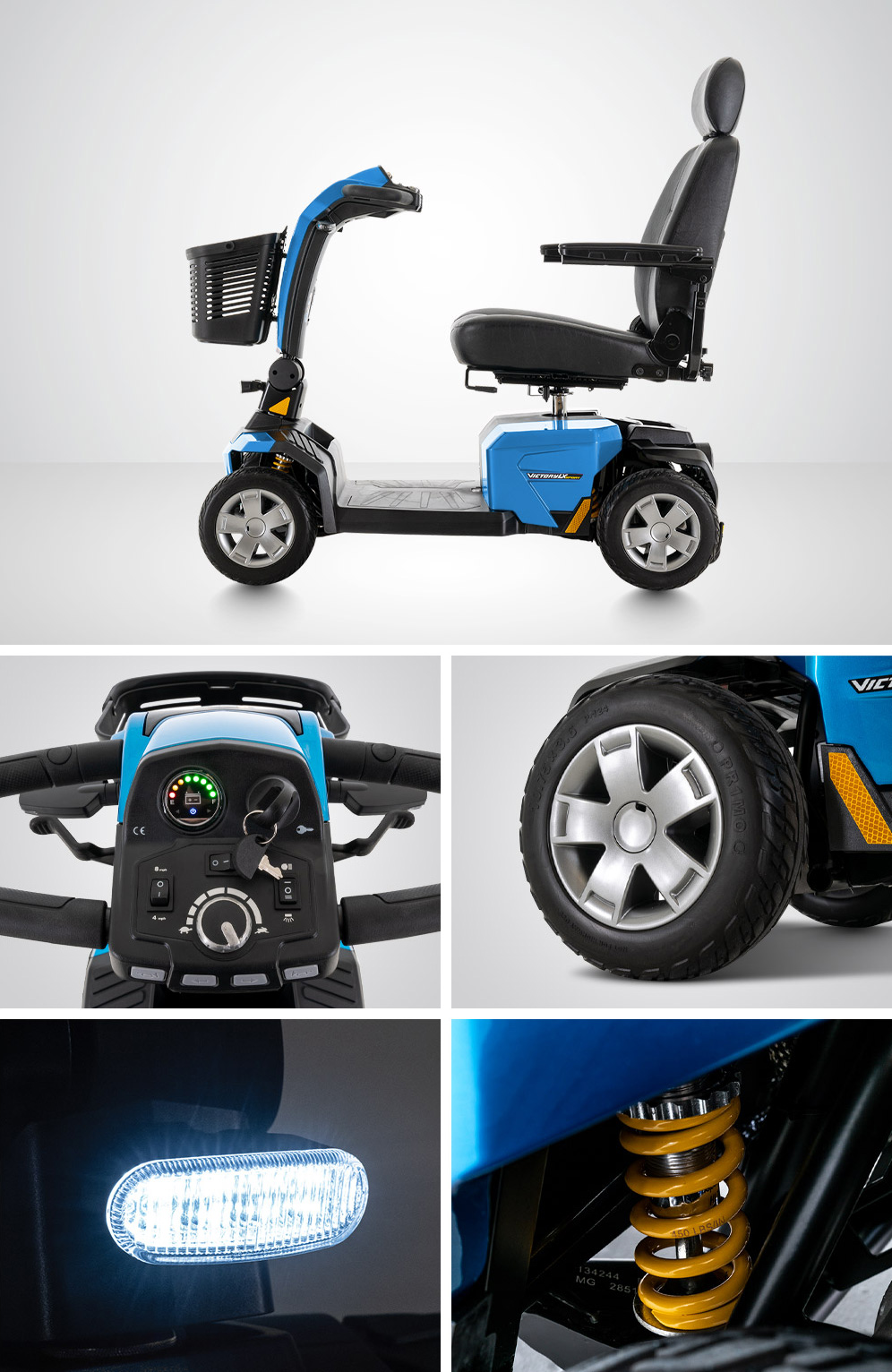

Features
- Comfort-Trac front and rear suspension
- Feather-touch disassembly permits simple frame separation with only one hand
- Delta tiller with wraparound handles
- Crush Proof Front Basket
- Black, non-scuffing tires
- Back-lit battery gauge
- Full LED lighting package that includes curb and rear lights, directional signals and courtesy light under tiller
- Auto connecting front to rear harness
- Easy Grip Tiller adjustment knob
- Easy access tiller-mounted charger port
- Storage compartment below tiller
- Enhanced flush-mounted horn buttons
Specifications
- Model; Victory 10 LX with CTS Suspension
- Model Number; S710LX
- Front Tires; 3.5″ x 10″ Solid
- Rear Tires; 3.5″ x 10″ Solid
- Maximum Speed; Up to 5.6 mph
- Ground Clearance; 2.2″ at motor
- Turning Radius; 59.9″
- Overall Length; 47″
- Overall Width of Base; 22.2″
- Seat-to-Ground Height Range; 23.25″-24.75″
- Seat Type; Reclining High-back with sliders & headrest (18×18)
- Weight; 179 lbs.
- Seat-to-Deck Height Range; 17.7″
- Battery Weight; 32.5 lbs. each
- Battery Requirements; (2)40AH
- Maximum Range Per Charge; Up to 16.16 miles
- Battery Charger; Off-board, 5A
- Suspension; Front and Rear
- Maximum Weight Capacity; 400 lbs.

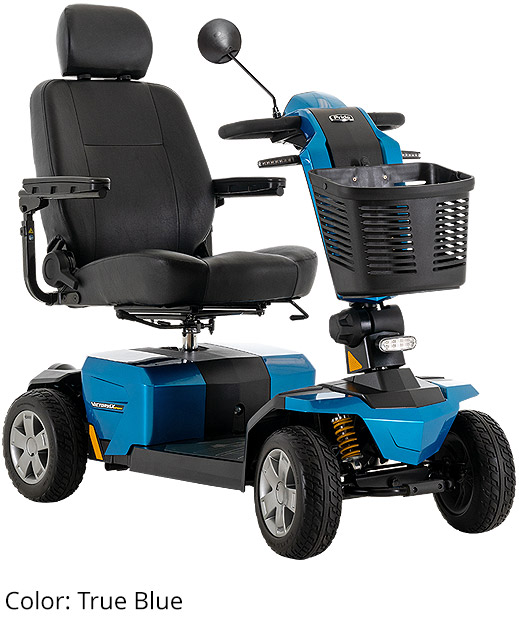

- Standard Body Colors; Candy Apple Red, True Blue
- Weight of Heaviest Piece; 77.6 lbs. (Front section)
- Warranty
- Lifetime limited on frame
- 2-Year limited on Electronics
- 2-Year limited on Drivetrain
- CATEGORY 4 Wheel Scooters , Scooters
